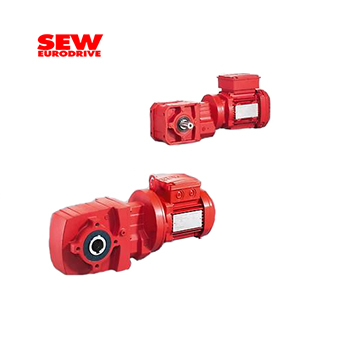

W series spiroplan right angle reducer
The handling system requires high speed, but the available space for driving is small and the weight is light
We recommend spiroplan right angle reducer for you: our lightweight player.
Smallest right angle reducer: powerful maintenance free transmission
Technical selection hotline: 400-1180805 / 18067219020
® Right angle reducer
Your material handling system requires high speed, but the available space of the drive is small and the weight is light? We recommend spiroplan for you ® Right angle reducer: our lightweight player.
Smallest right angle reducer: powerful maintenance free transmission
SPIROPLAN ® The helical gear reducer is characterized by a non wearing tooth profile. It ensures reliable power transmission, thus ensuring the speed adjustment of the conveyor system.
SPIROPLAN ® The output torque of the right angle reducer can reach 180 nm, and the power range is 0.09 kW to 3 kW.
Steel to steel material combination and special tooth surface meshing allow the reducer to be compact in design, thus saving installation space.
Details determine success or failure
The reducer adopts aluminum shell, which is very light. And thanks to special gears and lifelong lubrication, the maintenance amount is very low, which can ensure long-term reliable operation. Uncompromising: spiroplan ® The reducer is suitable for almost all driving tasks, thanks to its various design schemes.
Using the modular concept, the W series reducer is connected with the AC motor to form W DR.. SPIROPLAN ® The right angle reduction motor and the servo motor are combined to form w CMP SPIROPLAN ® Right angle servo reduction motor. You can also choose the AC motor or servo motor that meets your requirements separately.
Advantages and characteristics
1. Efficient operation: wear free spiroplan ® Transmission to minimize friction loss.
2. Light and compact: aluminum box and specially designed transmission device.
Product features
Powerful right angle reducer:
1. No wear spiroplan ® Transmission device (steel to steel material combination) and special tooth surface meshing
2. Minimize friction loss, optimize mechanical efficiency and reduce energy consumption
3. Anti vibration operation / operation
4. The speed ratio of the reducer is small, realizing high motor power and high speed
5. Light aluminum box
Installation:
The distance between the mounting holes of the foot and the face is the same, so a variety of mounting positions can be provided
Installation of W10, W20 and W30 reducer: the filling amount of lubricating oil has nothing to do with the installation position of these products
Available variants:
1. Foot or flange installation
2. B5 or B14 flange installation
3. Solid shaft or hollow shaft
4. Adapter installation
Installation of asynchronous motor:
1. For W10, W20, W30 reducer: motor direct connection installation
2. For W37 and w47 reducer: motor flange installation
Available options:
1.MOVIMOT ® Variant, such as a right angle reducer with integrated frequency converter
2.MOVI-SWITCH ® Variant, such as a right angle reducer with integrated switch and protection function
Technical data:
W Series / specifications 10, 20, 30, 37, 47
Specifications 10, 20, 30, 37, 47
Specification W10
Specification W20
Specification W30
Specification W37
Specification w47
Reducer speed ratio
i
3.20 – 75.00
6.75 – 75.00
6.57 – 75.00
6.57 – 75.00
3.20 – 69.05
3.27 – 74.98
Maximum output torque
Nm
25 – 180
twenty-five
forty
seventy
one hundred and ten
one hundred and eighty
Motor power range (installed through AM motor adapter)
kW
0.09 – 3.0
0.09 – 0.12
0.12 – 0.37
0.12 – 0.75
0.12 – 1.5
0.12 – 3.0
application area
Small fast conveyor belt in internal logistics
Roller conveyor
Belt conveyor
Chip conveyor
Specifications W10, W20, w30: especially suitable for noise sensitive working environment
Specifications W37, w47: shaft installation design, especially suitable for occasions requiring sanitation in the food and beverage industry
