With its expanded environmental conditions, SIMATIC s7-1500 can be used almost anywhere. Many controllers can operate in the temperature range of -25 ° C to + +60 ° C and are installed at an altitude of up to 5000 m. In addition, a variety of siplus PLCs can be provided.
SIMATIC S7-1500
Modular and expandable general-purpose system, protection grade IP20
System solutions for various automation applications in discrete automation
High performance and excellent availability
It can be configured through step 7 professional V12 and above in TIA portal platform
performance
Improve performance
High speed command execution:
Language extension
New data type
Faster backplane bus
Optimized code generation
Powerful communication:
PROFINET IO (dual port switch) is used as the standard interface;
Starting from CPU 1515-2 PN, one or more additional integrated PROFINET interfaces are used as intelligent devices for network isolation or for connecting more PROFINET devices or high-speed communication devices
OPC UA server (data access) and client are run-time options to easily connect SIMATIC s7-1500 to non Siemens equipment / systems
It can be extended through communication module for bus system and point-to-point connection
Integrated technology
Integrated motion control without additional modules:
Connect analog drives and profidrive drives through standardized blocks (PLCopen)
The motion control function supports speed control axis, positioning axis, relative synchronous operation (realizing synchronization without position synchronization specification), external encoder, output cam and probe.
CPU technology also integrates extended motion control functions such as absolute synchronous operation (synchronization using position synchronization specification) cams and motion control systems.
Comprehensive tracking function for all CPU variables for real-time diagnosis and intermittent error detection;
It has efficient debugging and fast optimization of driving and control devices
Extensive control functions:
For example, easily configurable blocks can automatically optimize control parameters to achieve optimal control quality
Obtain additional functions through the provided process module:
For example, high-speed counting, position detection or measurement of signals up to 1 MHz
Integrated security features
Ensure personal safety and machine safety – within the integrated package system platform
The fail safe SIMATIC s7-1500 (T) f controller can process standard programs and safety programs on the same controller.
The fail safe user program and the standard user program are created in TIA portal using the same editor; Therefore, fail safe data can be analyzed as standard data is analyzed in standard user programs. Due to this software integration, fail safe applications can also take advantage of SIMATIC's system features and comprehensive functions.
Redundant system

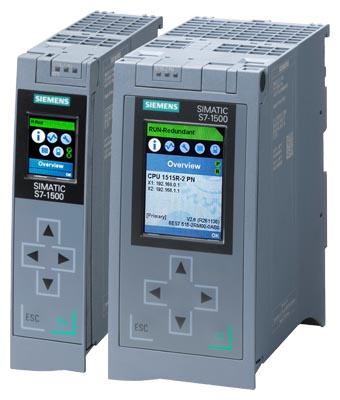

CPU 1513R-1 PN、CPU 1515R-2 PN

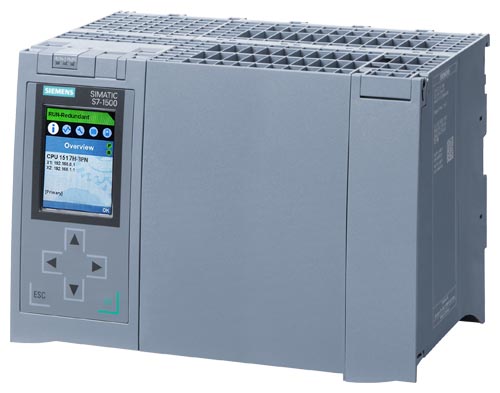

CPU 1517H-3 PN/FO
Redundant s7-1500r/h CPU is suitable for applications that require high availability of PLC.
Two CPUs are connected to the i/o station through a PROFINET IO ring network. The synchronization of s7-1500r is achieved through this ring network or through a separate FOC synchronization cable suitable for s7-1500h. In case of CPU failure, the backup CPU will automatically assume the control of the process. The data will not be lost, and the process can continue quickly. PROFINET IO ring ensures that all nodes remain accessible when the fieldbus is interrupted.
The configuration mode is the same as that of standard CPU. Synchronization of TIA portal and redundant CPU handlers with data. Users will not have any additional costs.

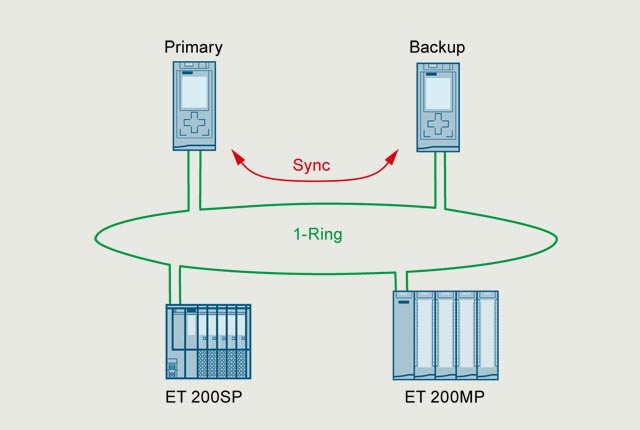

SIMATIC S7-1500R 操作模式

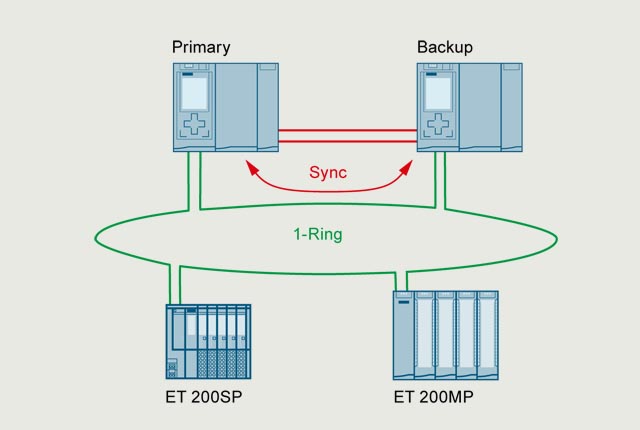

SIMATIC S7-1500H 操作模式
Integrated security features
Proprietary technology protection via password to prevent unlicensed reading and modification of program blocks
Improve the degree of protection by copying protection to prevent unlicensed copying of program blocks:
Through copy protection, the program block on the SIMATIC memory card can be bound with its serial number, so that the program block can run only when the configured memory card is inserted into the CPU.
There are four different license levels of permissions:
Different access rights can be assigned to each user group. With the new protection level 4, communication with HMI devices can also be restricted.
Improved operational protection:
The controller will detect changes in configuration data or unlicensed transfers.
For Ethernet communication processor (CP 1543-1):
Provide additional access protection through firewalls
Establish a secure VPN connection
Design and operation
CPU equipped with display can display plain text information (display simulation tool on the Internet):
It can display the order number, firmware version and serial number information of all connected modules
Directly set the IP address of CPU and other network settings on site, without using programming equipment
Displaying error messages directly in plain text reduces downtime
All modules adopt unified front connectors and have integrated voltage bridges for flexible formation of potential groups, thereby simplifying inventory and reducing wiring
S7-1500 DIN rail is integrated with top cap DIN rail:
Quick and convenient installation of miniature circuit breakers, relays and other additional components
Centralized expansion through signal module:
It can be flexibly adjusted according to the requirements of any application
System cable connection of digital signal module:
It can be arranged quickly and clearly to connect to the sensors and actuators on site and make simple wiring in the control cabinet
Power Supply:
The load power module (power module) provides 24 V power to the module
The power module can supply power to the internal circuit of the module through the backplane bus
A system power module used to permanently store the contents of the entire working memory on the controller
Distributed expansion:
Through PROFINET interface module im 155-5, up to 30 signal modules, communication modules and process modules can be used for et 200mp i/o system
There is no difference in the operation and system functions of centralized and distributed operation
Integrated system diagnostics
Integrated system diagnosis of CPU, activated by default:
The system diagnostic information can be displayed on the display and in TIA portal, HMI and web server in the form of ordinary text, and even the frequency converter message can be displayed. The message is updated even if the CPU is stopped.
The system diagnostic function is integrated in the CPU firmware. It does not need to be configured by the user. When the configuration changes, the diagnostic information will be updated automatically.
Support for SIMATIC prodiag s7-1500
Prodiag is a tool that is easy to create machine and equipment diagnosis. It can improve availability and provide support through fault analysis and troubleshooting on site.
Data recording (archiving) and recipes
SIMATIC memory card:
Plug in load memory
Firmware update available
Storage options for step 7 projects (including notes and symbols), additional documents, or csv/ascii files (for recipes and Archives)
Through SD card reader and using office tools, you can easily access equipment related operation data and configuration data (bidirectional data exchange with PLC)
Integrated web server:
-It is convenient to access the relevant operation data and configuration data of the factory, diagnose the motion control system, and display the tracking records through the web browser
